Rising to the Occasion

Platforms

Designed for safety, functionality and serviceability, Smeal platforms can flow large volumes of water or perform precision rescue operations. Platform controls have infinite feathering, ramping features, and low/ medium/high “shift on the fly” speed controls providing smooth multifunction operation of the aerial, even at low angles of elevation and fully extended. Additionally, our unique electro/hydraulic leveling system monitors the position of the platform relative to the ground, keeping the workspace level and platform occupants safer.

– Spacious working areas
– Operates at a minus 12 degrees up to 72 degrees
– Two bi-fold platform corner doors open in and out, large enought for stair chair access

100′ Rear Mount Platform

3-section ladder design
1250 lbs. dry / 500 lbs. wet tip-load
4 H-style outriggers
2,000 gpm flow rating with monitor capabilities of 45º up and down
And a full 180º horizontal sweep
Optional dual monitors

100′ Mid Mount Platform

5-section ladder design
1000 lbs. dry / 500 lbs. wet tip-load
4 H-style outriggers
Up to 1500 GPM waterway flow
Up to 300 US gallon tank capacity
Low travel height

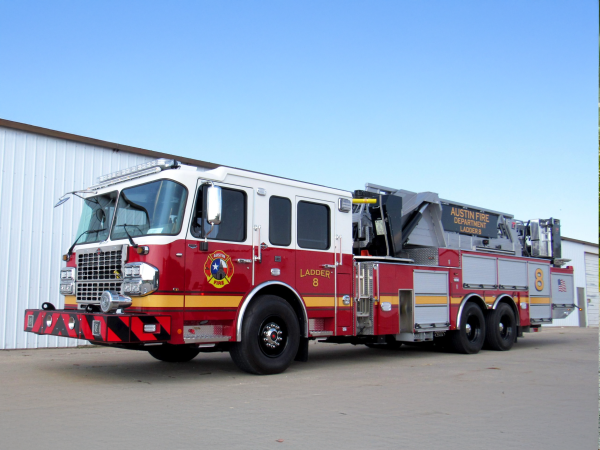

93′ Mid Mount Platform

Available in quint or traditional truck style
1000 lbs. dry / 500 lbs. wet tip-load unrestricted
Up to 2000 GPM waterway flow
2 front bumper swing down stabilizers provide additional stability for full 360 operations
4 H-style stabilizers
No front overhang eliminates any infringement on visibility from the cab
Low travel height
