107' Rear Mount Ladder

Specifications

  • Spartan Gladiator EMFD Flat Roof
  • Cummins X15 565 HP Engine
  • Allison 4000 EVS Transmission
  • Waterous CSU 2000 GPM Pump
  • 500 Gallon Tank
  • 1000′ of 5″ Hose / 39 cu. ft.
  • Harrison 8 kW MCR Generator
  • 750 lb. Tip-load dry/wet UNRESTRICTED
  • 4 H-style outriggers
  • 1500 gpm waterway flow

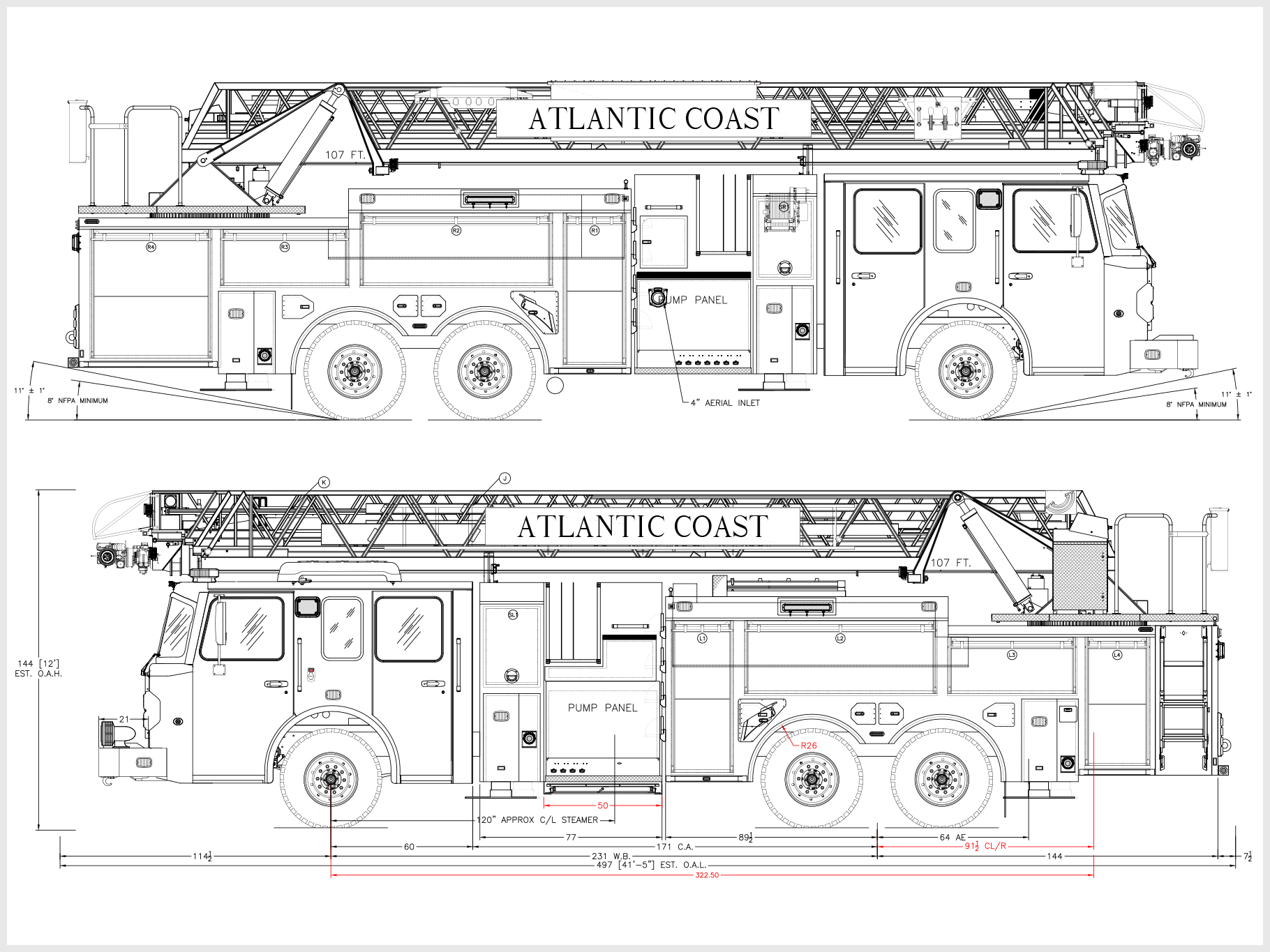

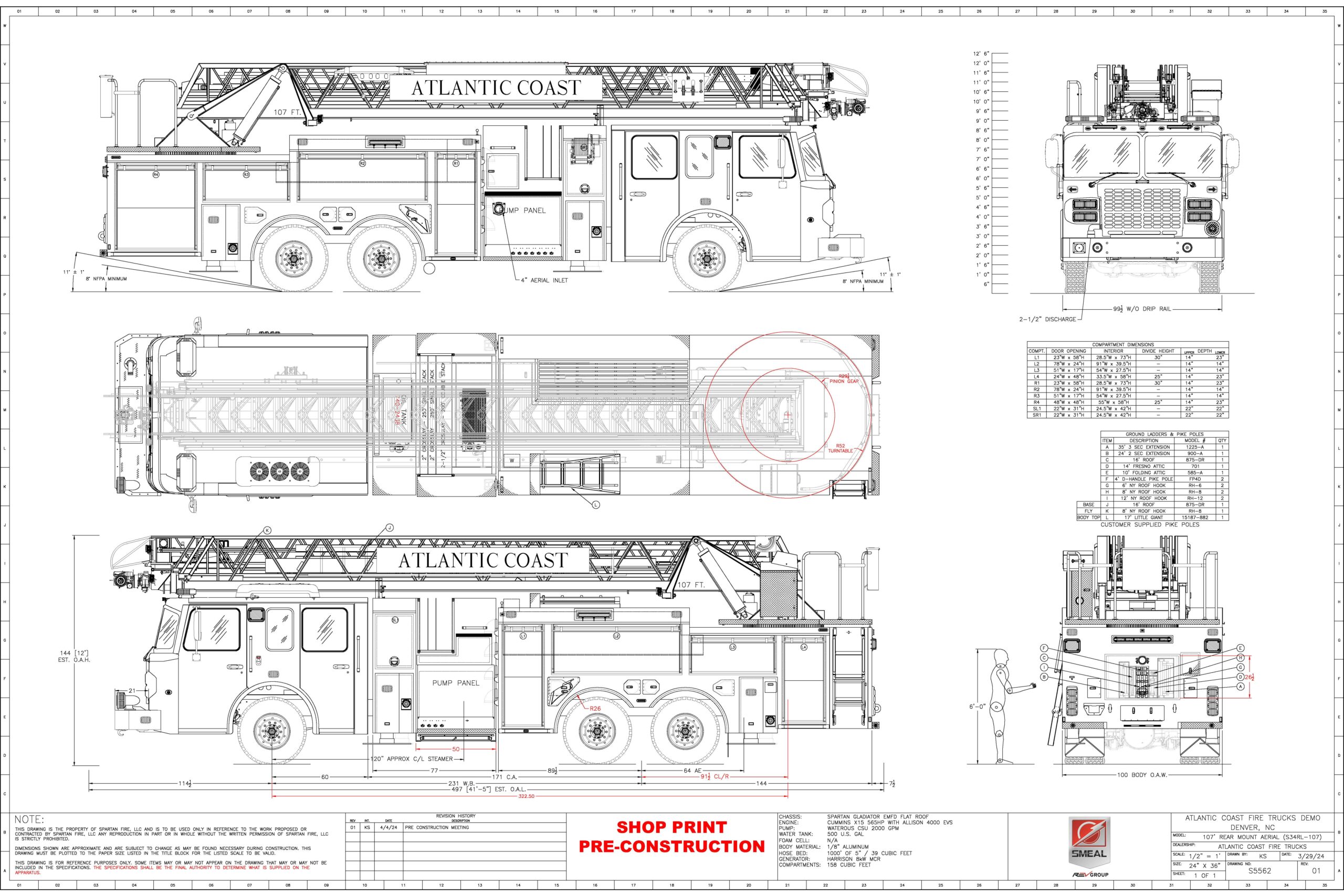

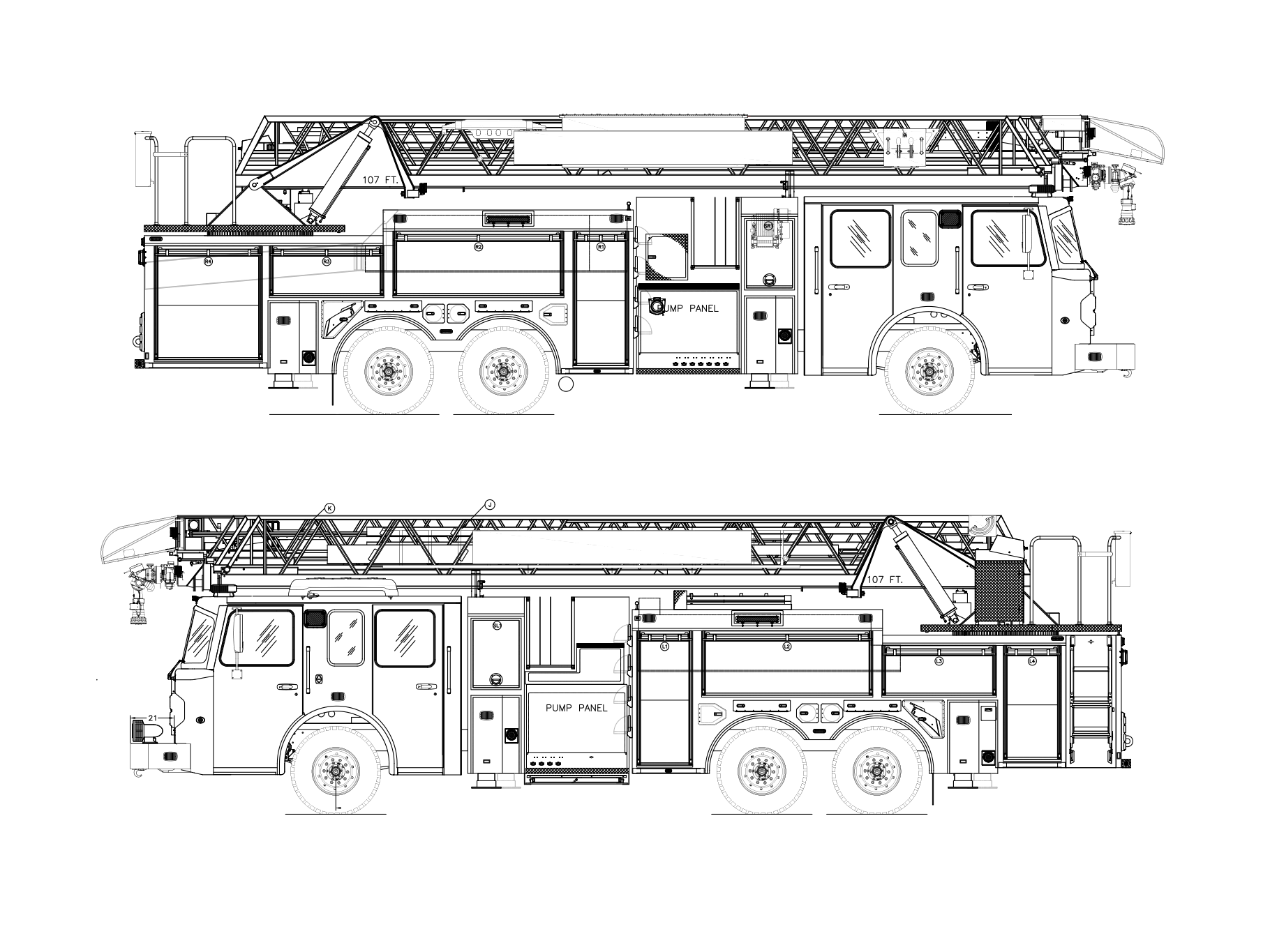

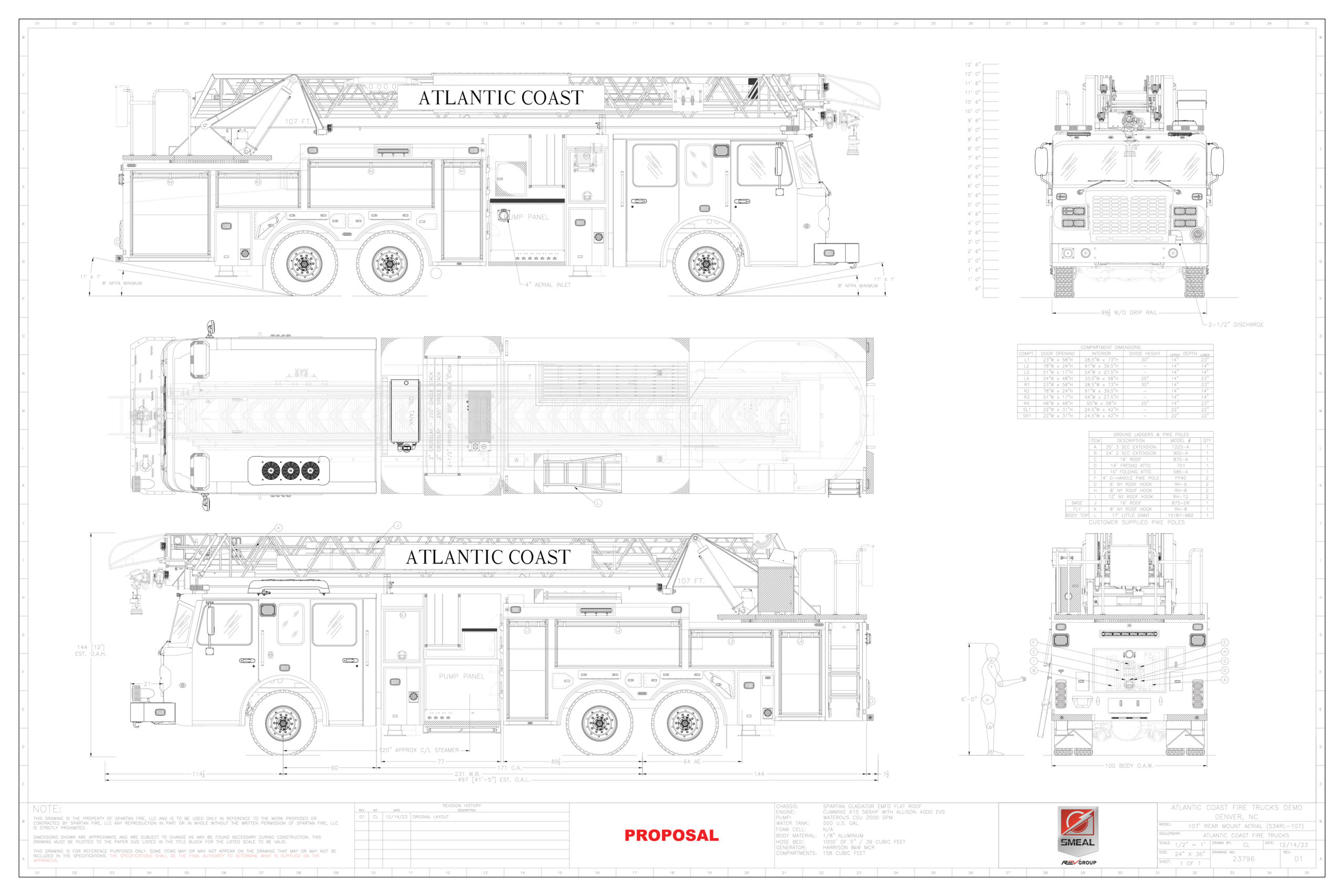

107′ Rear Mount Ladder

The 107’ rear mount ladder is configured with a unique outrigger design and placement that allow departments to achieve full operational capability on a 12-percent grade (downhill and uphill). Built to meet the rigorous demands of fire departments, this versatile ladder truck offers superior reach, unmatched stability, and industry-leading features to help you tackle every emergency with confidence.

STATUS: In-Production – Available in 2025

Learn More about the 107′ Rear Mount Ladder.

Specifications

  • Spartan Gladiator EMFD Flat Roof
  • Cummins X15 565 HP Engine
  • Allison 4000 EVS Transmission
  • Waterous CSU 2000 GPM Pump
  • 500 Gallon Tank
  • 1000′ of 5″ Hose / 39 cu. ft.
  • Harrison 8 kW MCR Generator
  • 750 lb. Tip-load dry/wet UNRESTRICTED
  • 4 H-style outriggers
  • 1500 gpm waterway flow
