BRAND

Ladder Tower

Ladder Tower (LT) Aerials are battle tested daily in some of the most demanding fire departments in the county from Los Angeles to Philadelphia. Square and rectangular tubing provide a large ladder cross section for superior rigidity, with longer weld joints for increased ladder strength. With tip loads up to 750 lbs. (wet & restricted) and minimal deflection, LT ladders can carry a heavier load and will remain stable and true even when fully extended or in windy conditions.

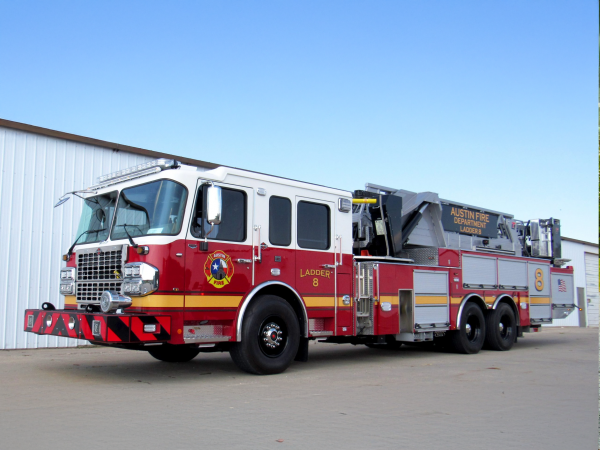

93′ Mid Mount Platform

Available in quint or traditional truck style
1000 lbs. dry / 500 lbs. wet tip-load unrestricted
Up to 2000 GPM waterway flow
2 front bumper swing down stabilizers provide additional stability for full 360 operations
4 H-style stabilizers
No front overhang eliminates any infringement on visibility from the cab
Low travel height

54′ Squrt

Available on custom or commercial chassis
High strength steel lower boom construction
Light weight, high tensile strength aluminum upper boom
1000 gpm waterway flow
Up to 750 US gallon tank
11’9″ stabilizer spread allows setup in tight streets
4” aluminum waterway
10’ 8” standard travel height

105′ Tractor Drawn Aerial

Short wheelbase trailer for tight urban streets
500 lbs. dry / 250 lbs. wet tip load rating
Up to 1000 GPM flow capacity
Expansive ground ladder storage
Narrow stabilizer spread
2 H-Style outriggers
11’3” overall travel height
Generous compartment space provides ample storage
Tandem tractor drive axles available

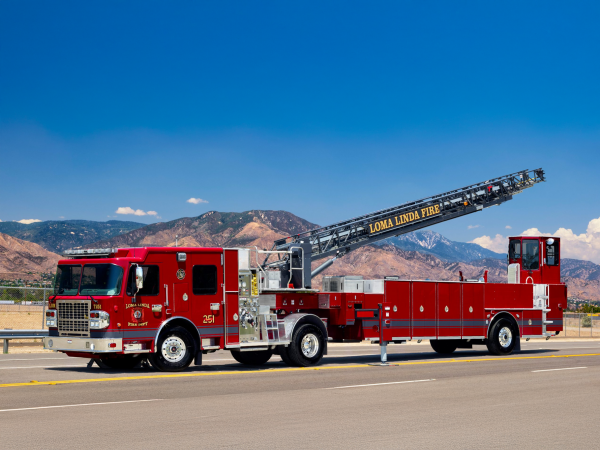

100′ Tractor Drawn Aerial

Short wheelbase trailer for tight urban streets
Up to 500 lb. tip-load
Expansive ground ladder storage
Narrow stabilizer spread
2 H-style outriggers allow for quick setup and a faster response
11’3″ overall travel height
Generous compartment space provides ample storage

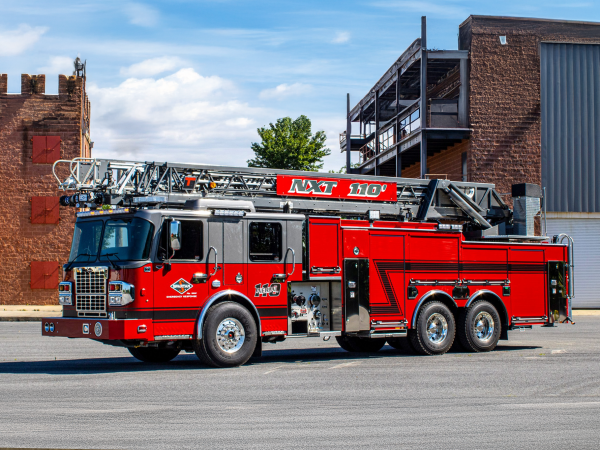

NXT 110′ Rear Mount Ladder

110′ vertical reach | 99′ horizontal reach
750 lb. tip load with 14′ outrigger spread
500 lb. tip load with 12′ outrigger spread
1,500 gpm aerial water flow capacity
2,250 gpm fire pump
Up to 170 ft. of internal ground ladder storage
Under 40′ overall travel length
53° cramp angle
223″ wheelbase

110′ Rear Mount Ladder

Available in quint or traditional truck style
4-section aerial ladder design
12′ stabilizer spread offers 500 lbs. dry / 250 lbs. wet
14′ stabilizer spread offers 750 lbs. dry / 500 lbs. wet
Up to 1500 GPM flow capacity
36.75” stabilizer stroke offers maximum operating grade up to 20%
Short wheelbase configurations – 237”
53° cramp angle offers increased maneuverability
11’ 7” standard travel height
